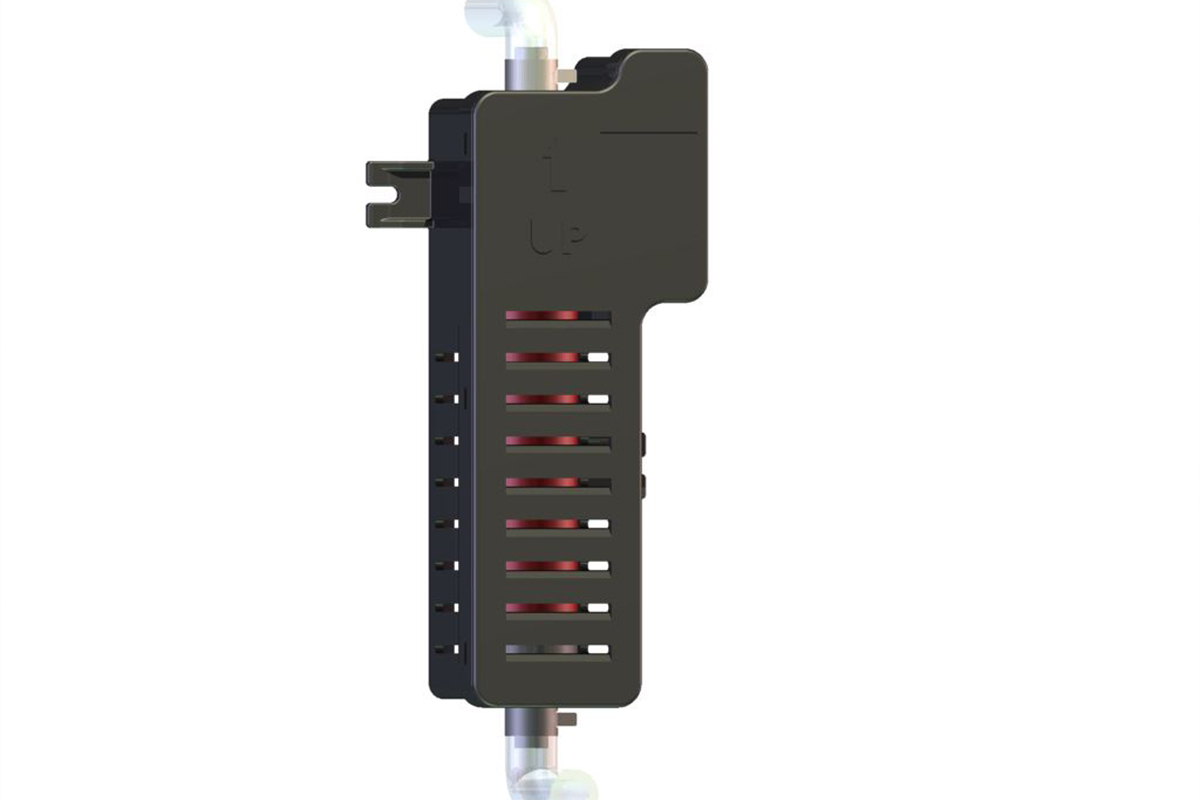

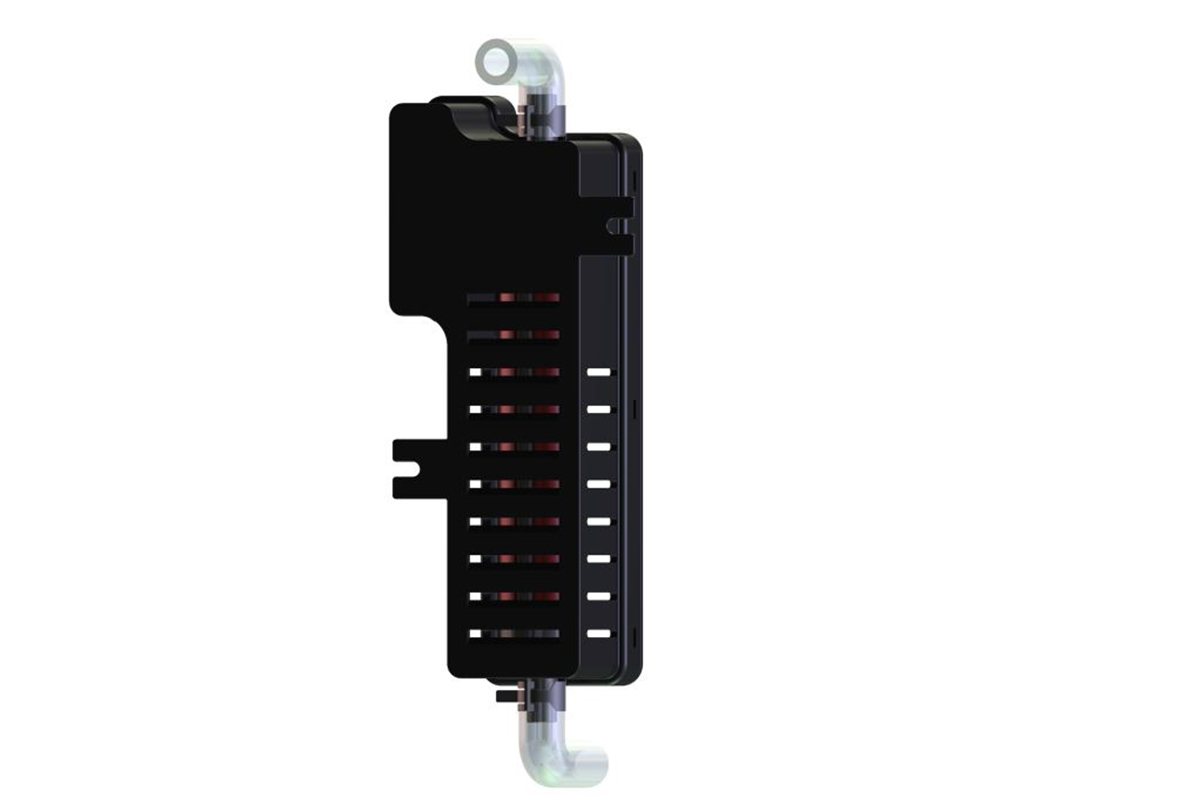

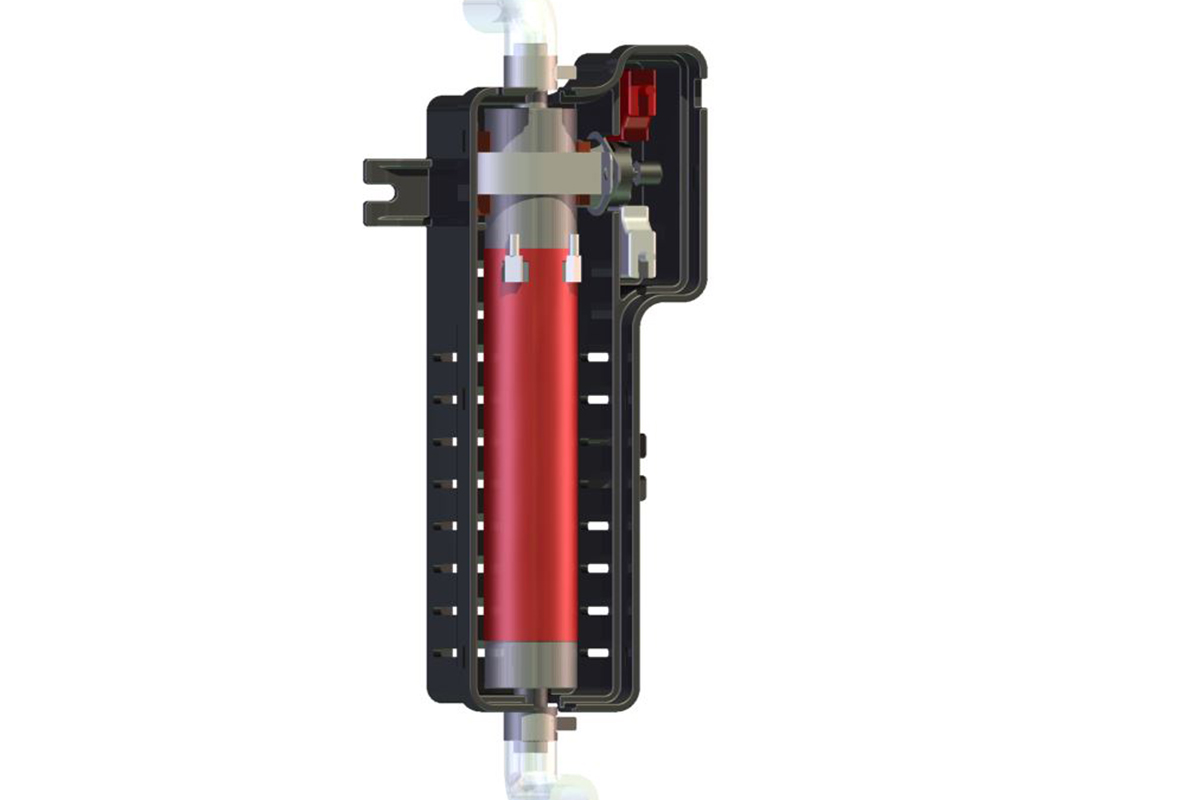

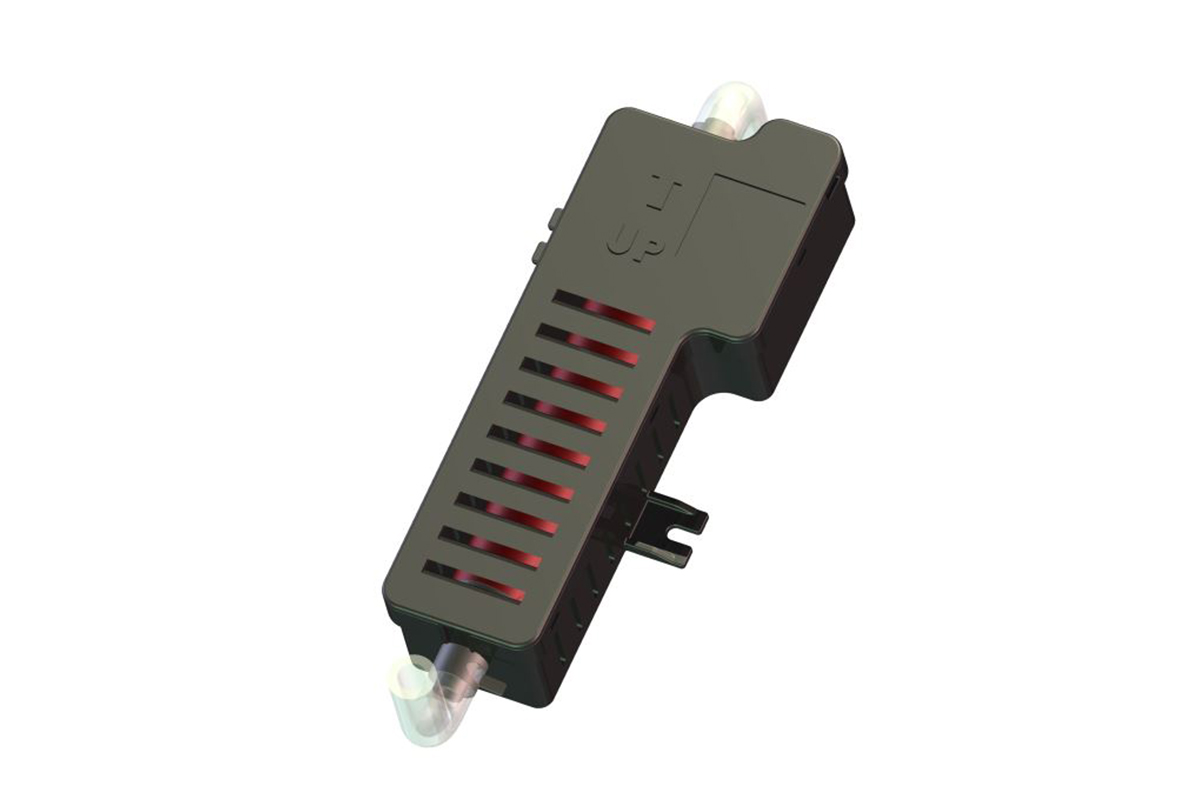

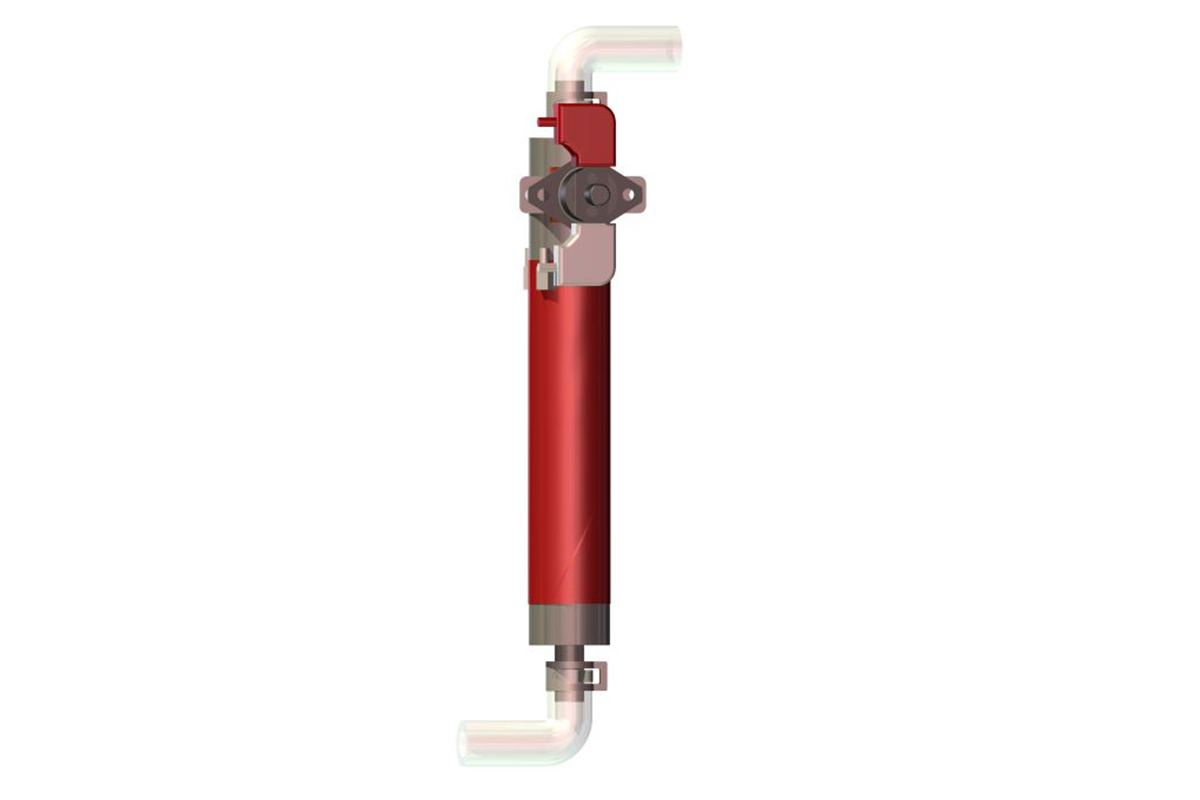

Instantaneous Heater Module
OVERVIEW
- You can use hot water By installing the Instantaneous Heater Module only. There is no need to keep a hot water tank and it can provide you Hot and Clean water from water purifier.
- To ensure the safety By Using bi-metal
- You can also, Use clean water instead of hot water.
SPECIFICATION
| Purpose of use |
Heater Module |
| Warranty |
2 years |
| Main Material |
POM, EPDM, BRASS, SUS,Silicone |
| Working Temperature |
30℃ ~ 100℃ |
| Temperature Control |
Low =30℃ ~ 60℃ , Middle = 60℃ ~ 80℃ , High = 80℃ ~ 100℃ |
| Working Pressure |
1.0 kgf/cm² ~5.0 kgf/cm² (15psi ~ 70 psi) |
| Burst Pressure |
10 kgf/cm² (150 psi) |
| Working Voltage. |
AC 220 V |
| Working Watt |
2,400 W |
| Working Hertz |
50 Hz |
| Standard Connection |
1/4″ fitting |
