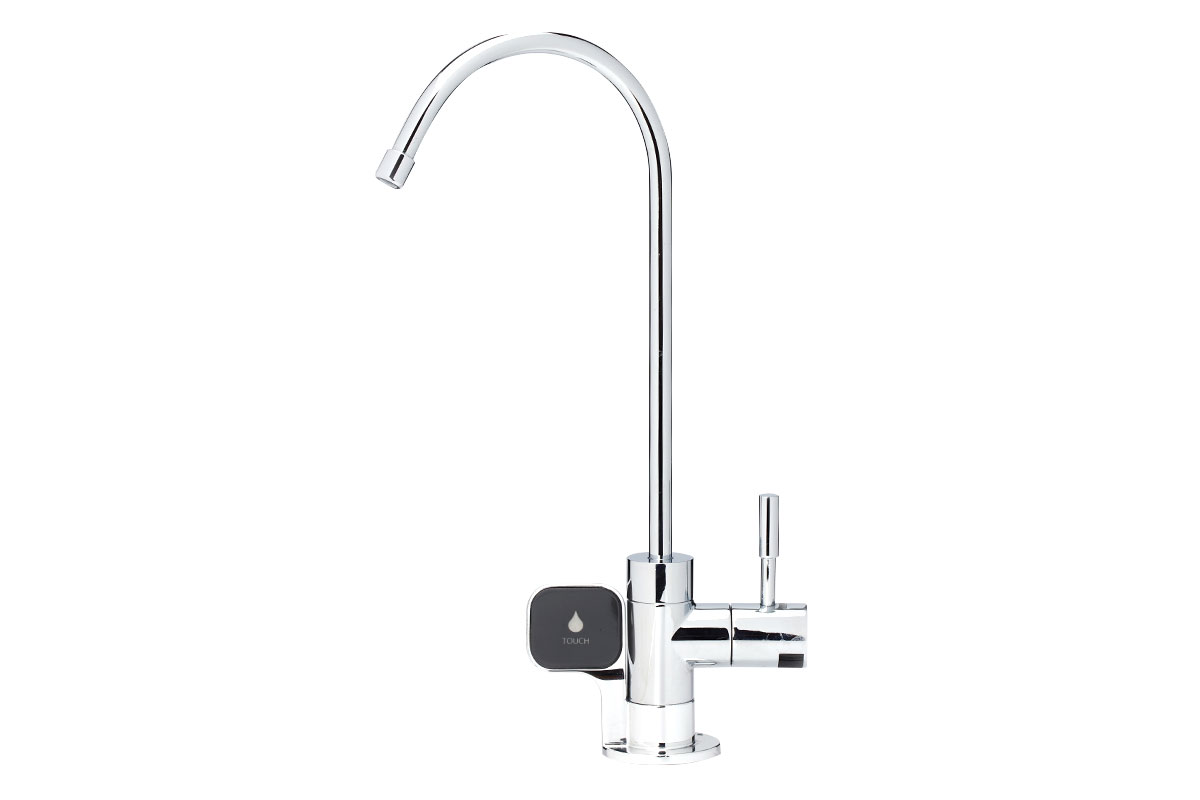

MINI TOUCH HOT WATER FAUCET

MINI TOUCH HOT WATER FAUCET

OVERVIEW

  • This is a mini-sized faucet for potable water with a touch sensor that enables easy cold or hot water usage.
  • Connect the water heater and filter under the sink and install the mini faucet to extract purified potable water.
  • It is small enough to be used on narrow sinks.
  • This faucet, heater, and filter system provides the convenience of purified potable hot water, and eliminates the need for a separate water purifier.

SPECIFICATION

Purpose of use Faucet
Warranty 2 years
Main Material POM, EPDM, BRASS, SUS, Silicone
Working Temperature 30℃ ~ 100℃
Working Pressure 1.0 kgf/cm² ~5.0 kgf/cm² (15psi ~ 70 psi)
Burst Pressure 10 kgf/cm² (150 psi)
Working Voltage. AC 220 V
Working Watt  2,400 W
Working Hertz 50 Hz
Standard Connection  1/4″ fitting

DETAILS

( When Water heater connected )
Touch the water drop-shaped icon to turn on / off water.
To use hot water, touch and hold the water drop-shaped icon for 3 seconds to activate the water heater.
Touch the water-shaped icon to turn off the hot water.

The handle can also be used to turn on / off water.
It does not enable a switch between cold and hot water, but as a safety measure, blue and red lighting indicates whether the water is cold or hot.

Related Projects

HOT WATER FAUCET

HOT WATER FAUCET

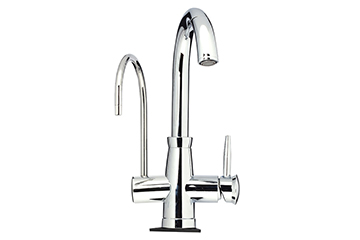

TWO WAY HOT WATER FAUCET

HOT WATER FAUCET

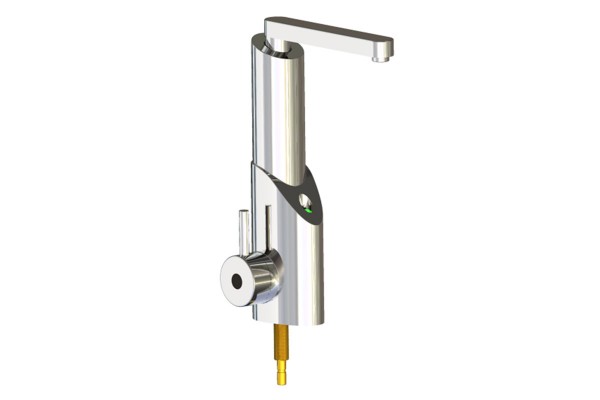

Electric sterilize Faucet
